Light Handheld Mobile Network Tactical Inspection IP MESH SDR Radio
MH33 Handheld Mesh Radio Specifications-v1.0_compr...
1.Quick detail Of Wireless IP Mesh SDR Radio
Secure/Encryption: DES/AES128/AES256(optional)
Receive sensitivity:-100dbm@5MHz
Modulation: COFDM
Support for 64 nodes
Multiple talk groups
Removeable Battery
Support for 64 nodes
Transparent transmission of IP date
Support two-way intercom
MIMO technical,with stronger singnal
RF Transmitted power: 1W
2. Description of IP Mesh SDR Radio
Handheld mesh(ad hoc) radio with small size,light weight,equipped with removable lithium battery,can be held in hand,but also can be placed on the shoulder and back of a individual solider to carry.
The system adopts co-frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.
3. Specification of IP Mesh SDR Radio
| System Parameter |
| Operating frequency | 1428～1448MHz |
| Bandwidth | 5/10MHz,Flexible and configurable |
| Transmission system | COFDM |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) |
| Transmission capacity | Peak rate 26Mbps@10MHz |
| RF Transmitted power | 1W |
| Receive Sensitivity | -100dBm@5MHz |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need to be customized) |
| Networking function | Networking capable | ≥64 nodes |
| Networking hops | ＞10 hops |
| Network topology | Centerless network, star network, chain network, mesh network, etc |
| Encryption mode | DES/AES128 / AES256 (Optional) |
| Power supply mold | Allocate DC 12.6V removable lithium battery |
| Power Consumption | ≤20W |
4. Application of IP Mesh SDR Radio
The robust ad hoc network algorithm is embedded, and no central gateway is required, and any one can realize the mesh network function. In practical applications, mesh network design can be used without worrying about network disconnection.
It can provide wireless broadband communication for "peacetime and emergency" tasks such as emergency response, anti-terrorism and riot prevention, covert reconnaissance, special operations, rescue and disaster relief, and daily patrols.
The transmission distance from the open environment on the ground can reach more than 5km, the blocking environment is 300~500m (depending on the blocking environment), and the air to the ground is greater than 20km.

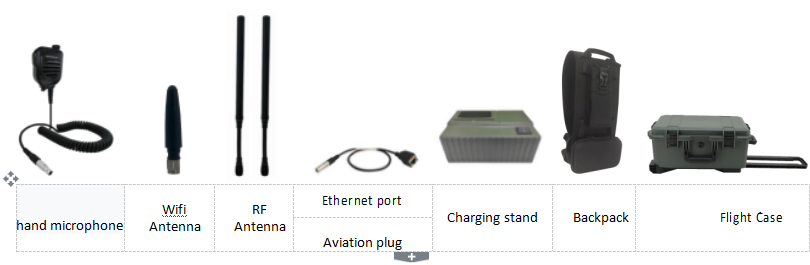

5. Accessories of IP Mesh SDR Radio
1 X of Handheld Wireless IP ad hoc Radio Host
1 X Hand microphone
1 X WIFI Antenna
2 X RF Antenna
1 X Ethernet Port aviation Plug
1 X Charger
1 X BackPack
1 X Guarantee card
7. FAQ
Q1. Can I get a sample order for IP Mesh SDR Radio?
A1: Yes, we welcome our customer to place the sample order for test and check quality.
Q2. How about the lead time?
A2: Sample usually needs 5-7 days, mass production time needs 1-2 weeks,
The customized one will based on your reuqirements and quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. Also can by air or sea,will accoring to your requirements.
Q4. Is it OK to print my logo on IP Mesh SDR Radio?
A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Payment term
A6: Support T/T 100% before production.
